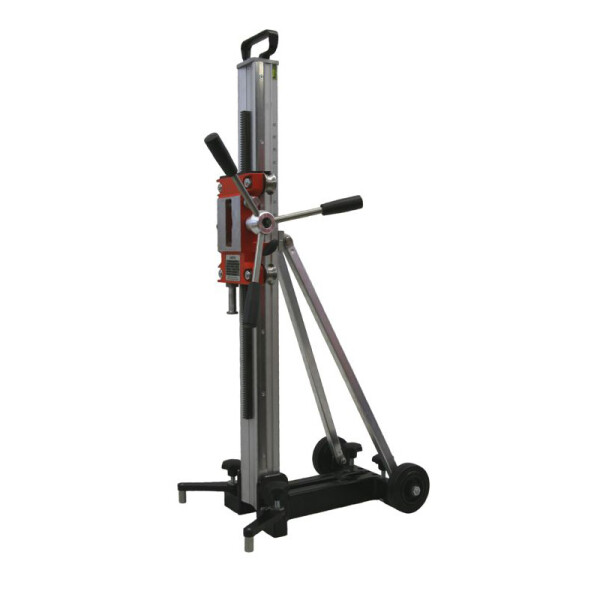

Diamond Drill Rig KS 30 E

SKU: WekaKS30E

GTIN: 4260529245801

Category: Weka core drill rigs

in Stock
Delivery time: 8 - 10 Workdays (DE - int. shipments may differ)

1.192,56 € 1.403,01 € 15%

incl. 19% VAT ,

Diamond Drill Rig KS 30 E

Solid, torsion-resistant drill column made of high-tensile aluminium-alloy
Adjustabel ball bearing supported roller guidance made of stainless stee
Feed carriage slides absolutely free from backlash
Quick change plate for fastening the drilling machine
Combined rig foot, can be fixed with dowels and vacuum or very robust steel base
High bending and vibration stability together with a very low weight
Gear rack made of wear resistant steel
Stop bolt at the carriage to apply the wrench for loosen the tool
Measuring scale for adjusting the inclination
Ergonomically designed hand wheel, can be fixed left and right without tools, easy selection of the operating side
Levels and adjusting screws for precise vertical and horizontal alignment of the rig
Wheels and two adjustable swing feet
Vacuum fittings, gasket and water collecting ring as accessory
Distance plate for a max. drill bit diameter of 350mm as accessory
Verions KS30 E und KS 30 S available

Diamond Drill Rig KS 30 E

Solid, torsion-resistant drill column made of high-tensile aluminium-alloy
Adjustabel ball bearing supported roller guidance made of stainless stee
Feed carriage slides absolutely free from backlash
Quick change plate for fastening the drilling machine
Combined rig foot, can be fixed with dowels and vacuum or very robust steel base
High bending and vibration stability together with a very low weight
Gear rack made of wear resistant steel
Stop bolt at the carriage to apply the wrench for loosen the tool
Measuring scale for adjusting the inclination
Ergonomically designed hand wheel, can be fixed left and right without tools, easy selection of the operating side
Levels and adjusting screws for precise vertical and horizontal alignment of the rig
Wheels and two adjustable swing feet
Vacuum fittings, gasket and water collecting ring as accessory
Distance plate for a max. drill bit diameter of 350mm as accessory
Verions KS30 E und KS 30 S available

Product safety information

Manufacturer information:

WEKA Elektrowerkzeuge KG
Auf der Höhe 20
Baden-Württemberg
Neubulach-Altbulach, Deutschland, 75387
[email protected]
https://www.weka-elektrowerkzeuge.de

Shipping weight:	2,79 kg
Item weight:	2,79 kg

Gesamtlänge	950 mm
Vorschubweg	580 mm
Bohrkronenlänge max.	560 mm
Bohrkronendurchmesser max.	300 mm – mit Distanzplatte 350 mm
Schrägverstellung	über 45 Grad
Ständerfuß	Kombifuß
Maschinenbefestigung	Schnellwechseladapter
Schlittenführung	Kunststoffrollen
Gewicht	11,5 kg
